Applying Chart

About Notation on Applying chart

STD	Standard made of Steel
RLB	Standard / Special Edition made of Steel
LXB	Standard / LINE-X Edition made of Steel
LTD	Limited made of Stainless Steel
LTDII	Limited 2 made of Stainless Steel

Notation of harness type

○：Generic harness…Usual 6pin wire. Need to branch wires

●：Specific harness…Just coupler on. Working time will be shortened a lot.

Towing Class

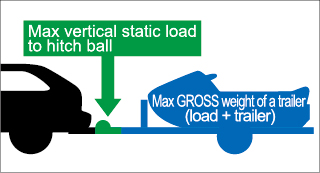

Towing Class	Max GROSS weight of a trailer	Max vertical static load to hitch ball
Class A	500kg	75kg
Class B	550kg	75kg
Class C	750kg	75kg
Class E	2,000kg	200kg
Class SP	depends on models

Notation about note

Edit

Take off	T-1：Rear step bumper / Rear under spoiler T-2：Rear guard bar/pipe/spoiler etc. T-3：Rear mudguard / plastic cover T-4：Towing hook T-5：Spare tire T-6：Muffler cutter
Detach and attach	D-1：Muffler/muffler hunger D-2：Spare tire D-3：Bumper
Edit	K-1：Expand hole K-2：Bumper K-3：Rear undercover

Working time

Working time is estimated by our staff. It will vary by experience and environment.
※Strongly recommend to work with 2 people

Ball mount

Standard	上 means UP 下 means DOWN Attach the hitch ball as indicated
Limited	L-0～150：Ball mount for Limited model L-0=LTD0 L-40=LTD40 L-68=LTD68 L-104=LTD104 L-150=LTD150
Limited II	上-0～1：Attach ball mount UP ward 下-0～1：Attach ball mount DOWN ward 上-2～7：Attach ball mount UP ward 下-2～7：Attach ball mount DOWN ward

Optional Ball mount

An optional ball mount is used to change the height of the hitch ball.
Our standard ball mount is set height to 430-455mm from the ground to the center of the ball to normal models. When you need to change the height of the ball mount, please use it as you like.
